Areas of application
Machine downloading
- Transferring the data to the machine (offline/online)
- Feedback of production positions
- Operator registration at the machine
- Cast management
- Creation of bundles/batches
APPS
- Delivery control
- Unloading control
- Goods receipt
- Inventory
- Machine feedback
Printer
- Suitable printers for labels and paper
Barcode Laser Scanner Kit MT2070 Bluetooth Imager from Zebra
- Bluetooth scanner
- incl. Bluetooth cradle, power supply and cable (USB or RS232)
- 2D, Imager
- Keypad (19 keys)
- Display
- FIPS
- Protection class: IP67
Digi One SP, RS-232, DB-9M
- incl. power supply unit
Country of origin: USA - Used for machines with LAN interface
Moxa 1 Port Wireless Device Server
- 1 Port
- incl. power supply unit
Country of origin: Taiwan - Used for machines with WiFi
Digi PortServer TS 2
- 2 x RS232
- Power supply unit and cable
- Country of origin: USA
- Used for machines with serial interface
Moxa 2 Port Wireless Device Server
- 2 Ports
- incl. power supply unit
Country of origin: Taiwan - Used for machines with WiFi
areas of application
All apps can be run on any device!
Delivery control
Unloading control
Goods receipt
Inventory
Machine feedback
Creation of bundles

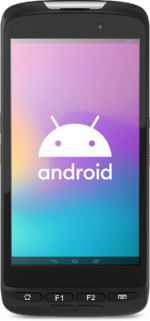

POKINI TAB FS5 KIT
- incl. pistol grip and charging station
- incl. LP software and a 30-month warranty
- Protection class: IP65 (MIL-STD810G), drop-proof from 1.2m height
- Operating system: Android 9.0
- Display: 5“ (12.70 cm), robust Corning Gorilla Glass with 5-finger capacitive touch, 720 x 1280 pxl
- Barcode laser: 1D/2D imager
- Connectivity: WLAN, Bluetooth 4.0, GPS, NFC, 4G LTE (Android)
- Battery life: up to 11 hours
- Operating temperature: -10°C to +55°C
POKINI TAB FS6 KIT
- incl. pistol grip and charging station
- incl. LP software and a 30-month warranty
- Protection class: IP65 (MIL-STD810G), drop-proof from 1.2m height
- Operating system: Microsoft Windows 10 IoT
- Display: 5.8“ multi-touch, Corning Gorilla Glass, 1280 x 720 pixels
- Barcode laser: 1D/2D imager
- Connectivity: WLAN, Bluetooth, GPS, 4G (UMTS)
- Battery life: approx. 8 hours (under load)
- Operating temperature: -20°C to +60°C

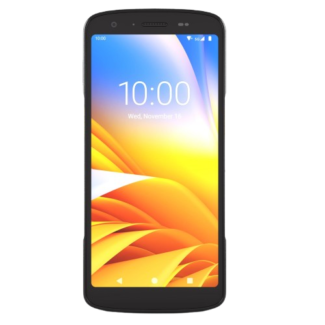

Zebra TC21/26
- incl. pistol grip and charging station
- incl. LP software and a 30-month warranty
- Protection class: IP67
- Operating system: Android
- Display: 5-inch HD colour display (1280 x 720), Corning Gorilla Glass with capacitive 5-finger touch
- Barcode laser: 1D/2D imager
- Connectivity: USB (Type C)WLAN, Bluetooth, GPS, Micro SD slot ,1 Nano SIM slot, optional eSIM (TC26 only)
- Battery: 3300mAh
- Operating temperature: -10°C to +50
With offline machine downloading, the scanner is connected directly to the machine. Either via USB or RS232 cable. By scanning the 2D barcode on the label, all necessary data is transmitted to the machine.
Barcode Laser Scanner DS3608 Kit from Zebra
- incl. RS232 cable 7ft and power supply unit
- Country of origin: USA
- 2D imager
- Communication: Cable
- Reading range: Distance (0-100cm)
- Interface: Multi interface, USB or serial
- Scan Features: Standard Range
LENNERTS & PARTNER can also provide you with the right printer solution for your tags! We recommend laser printers for tags in sheet format. The advantages include familiar handling and the possibility of colour printing. In cooperation with our partners for labels and printers, we can recommend and offer you the following models:
Lexmark CS820de
- Desktop laser printer colour
- Up to 57 pages/min
- 1 x 550-sheet-cassette
- 2.400 x 600 dpi print resolution
- Duplex printing, automatic
- Additional cassettes possible
OKI C650 DN
- Desktop laser printer colour
- Up to 35 pages/min
- 1 x 350-sheet cassette
- Formats: A6-A4/legal
- Grammage: 60 g/m² – 256 g/m²
Thermal transfer printers are recommended for tags on the roll. One of the advantages is the fast printing of individu-al tags, e.g. for printing tags directly on the machine. However, the use of colour ribbons means that only monochrome printing is possible. The DTM printer combines the advantages of a laser printer and roll material, but is limited in print width.
In cooperation with our tags and printer partners, we can recommend and offer the following models:
DTM CX86e
- Desktop LED laser printer (CMY three colour toner cartridge)
- 600 x 600 dpi native; up to 1,200 x 1,200 dpi
- Print width: max. 86 mm
- Print speed: max. 152 mm/s
- Communication: USB 2.0, Ethernet, WLAN (optional), GPIO control interface
TOSHIBA B-EX4T2
- Desktop thermal tansfer printer
- 203 dpi
- Print width: max. 104 mm
- Print speed: max. 305 mm/s
- Communication: USB 2.0, Ethernet, WLAN, RS-232, Centronics
ZEBRA ZT230
- Desktop thermal tansfer printer
- 203 dpi/8 dots per mm
- Print width: max. 104 mm
- Print speed: max. 152 mm/s
- Communication: USB 2.0, RS-232
